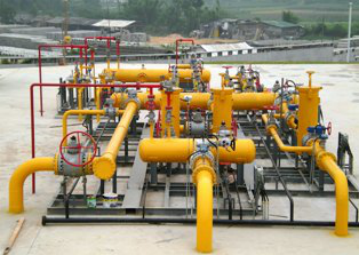

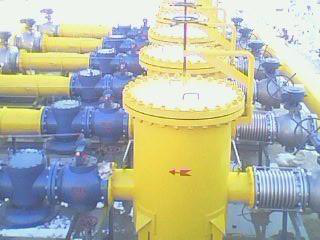

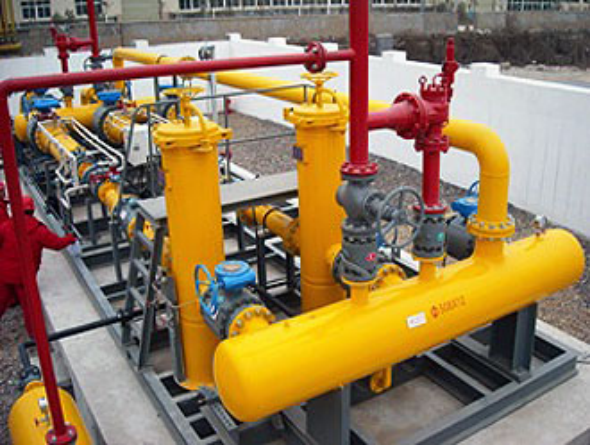

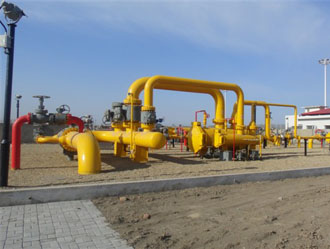

The gas pressure regulating device of the city gate station from the long-distance transmission pipeline into the city pipe network, with filtering, Pressure regulating device with metering, heating, pressure regulating, odorization, distribution, telemetry and remote control functions.
the city gas gate station is also referred to as the city gate station, or the natural gas off load station, which is applicable to the long-distance natural gas pipeline.
The key equipment of the pipe network entering the market has the functions of purification, pressure regulation, metering, distribution, safety protection, etc., and can be equipped with gas alarm, automatic control and odor adding devices as required.The city gas gate station generally adopts skid mounted structure, and carries out equipment modeling and process design according to the parameters and working conditions provided by the user. The pressure regulating equipment adopts high-quality products at home and abroad to ensure its safety stability and pressure regulating accuracy.
equipped with high-precision filter and valve;
equipped with automatic overpressure cut-off device and safety release device;
equipped with high-precision metering equipment, with high metering accuracy;
electric heating and steam heating systems can be installed according to the environment of different regions, such as northeast China;
equipped with remote data acquisition and observation system, convenient for remote monitoring.
applicable media: natural gas, CNG, LNG, LPG, etc.
inlet pressure: 0.4-6.4mpa
outlet pressure: 0.05-0.4mpa
voltage regulating structure: divided into level 1, level 2 and level 3; two-way, three-way and multi-way
voltage regulation accuracy: < 1%.
